| Windows
Sliding Door
Slide-fold Door
Fixed Sunshade / Box Louver
Sliding Louver
/ Sunshade
Openable Sunshade
Other
Doors
 |

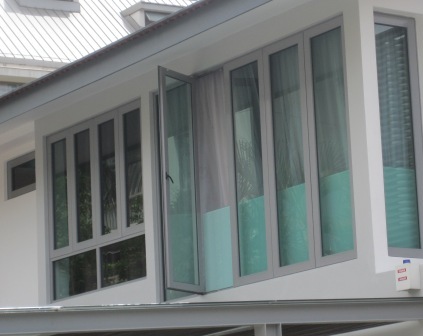

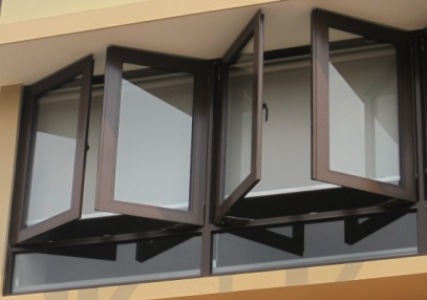

We offer sliding, top
hung, casement window complete with anodizing, powder
coating or fluorocarbon.
We are able to offer
sound reduction
casement window through the use of double-glazed glass which
can achieve 49dB, equivalent to quiet office or street
environment.
We have the opportunity to work
with InterContinental Hotel to retrofit their windows to
achieve required acoustic requirements for low floor rooms
facing the main roads.
|
|
 |
| |
 |
|
 |
| |

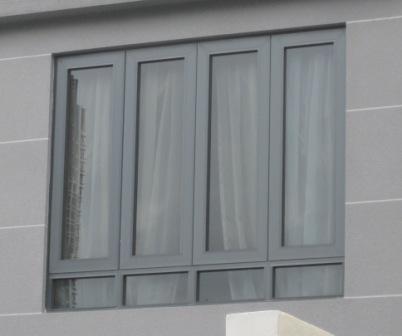

Thick profile w/o
centre mullion
|
|
Full height with internal
glass safety barrier
with thick window profile
|
| |
For robust look and
performance, we offer wide extrusion profile
with high performance mechanisms and components for easy and
trouble free operations.
We
are able to offer up to 3.5m high sliding panel through
proper reinforcement and use of quality roller.
|
|

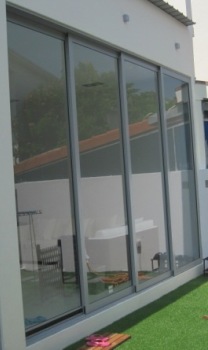

3.5m high sliding door |
| |
Reliable top-mounted heavy duty quad
roller system for smooth, reliable performance with matching
double track for optimum performance and support which
ensures heavy panel operates easily.

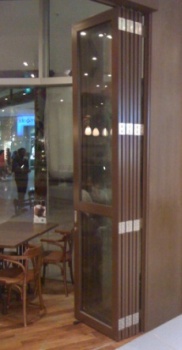

Recommend to keep each panel below 600mm
and have an odd number of panels
with odd panel acting as a hinged door to allow convenient
exit or entry without opening up the slide-fold door.
 |
|
 |
| |

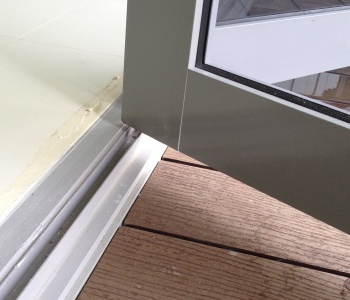

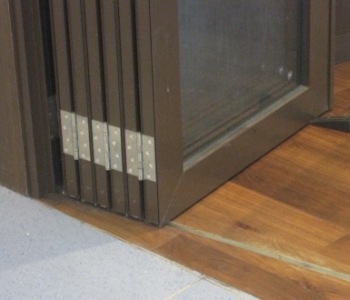

U-channel bottom track

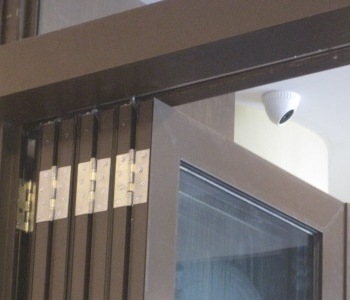

Quad roller top track |
|
|
| |
|
|
|
| |
 |
|
|
| |

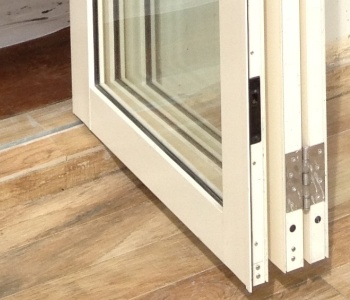

Floor drop required if exposed to weather. |
| |
Construct of various box
hollow section (25x50 or 25x75, etc) with various spacing
(25,38mm, etc) to achieve
various aesthetic, sun shading and privacy objective.
|
| |
 |
|
 |
| |
 |
|
 |
| |

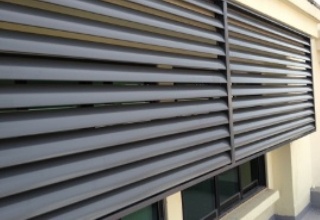

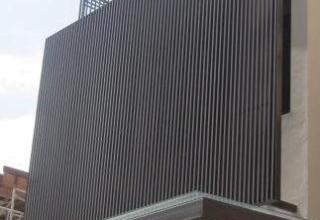

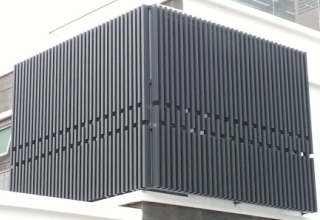

Fix Vertical Sunshade
|
|

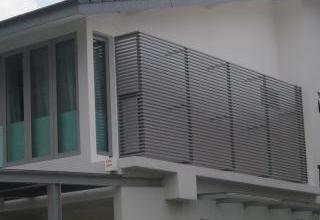

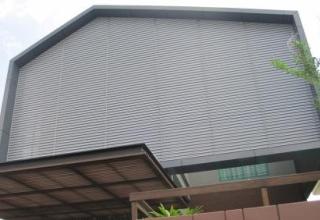

Fix Horizontal Sunshade |
| |
 |
|
 |
| |

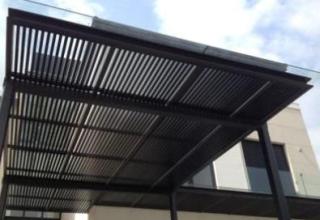

Trellis below glass canopy
|
|
Hanging Aerofoil Blades Sunshade |
| |
|
|
|
| |

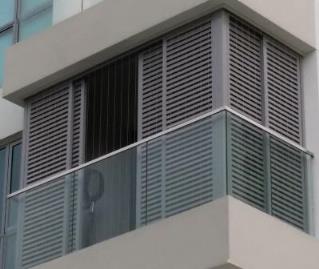

Sliding door infill with
standard aluminium blades or 50mm aerofoil for area such as
balcony enclosure or screen in front of existing sliding
door
|
| |
|
|
|
| |
 |
|
  |
| |

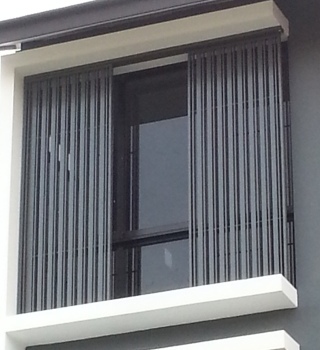

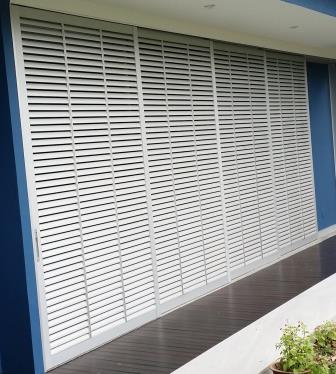

Sliding Sunshade with 50mm
aerofoil blades |
|

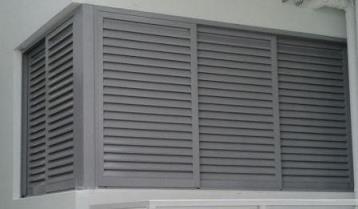

Sliding louver with standard
louver blades

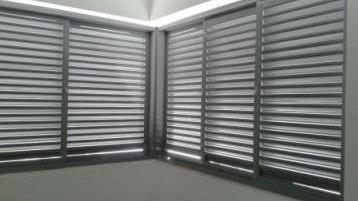

[Top : Outside view / Bottom :
Inside View]
|
|
|
 |
|
 |
| |
Sliding Sunshade |
|

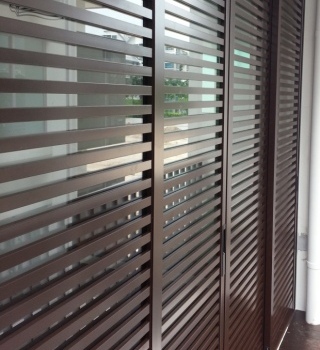

Sliding Glass Door
Integrated With Box
Louver |
| |
 |
|
|
| |
Sliding Sunshade |
|
|
| |

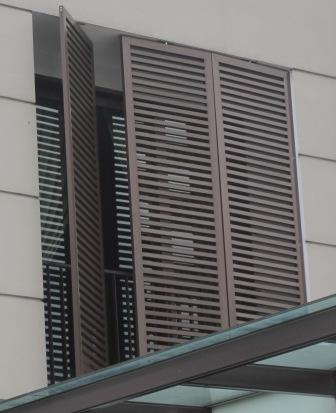

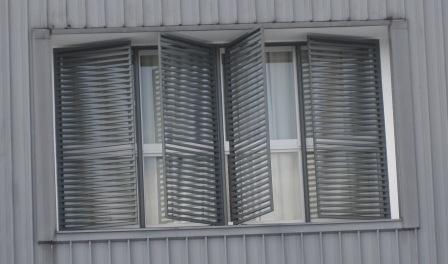

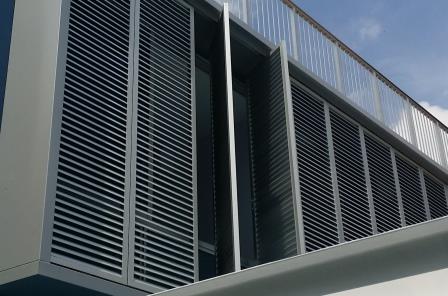

Casement or centre pivot panel sunshade infill with
aluminium hollow or aerofoil blades.
 |
|
 |
| |
|
|
|
| |
 |
|
|
| |
|
|
|
| |
 |
|
 |
| |
Comply with PUB regulatory
requirement. |
|

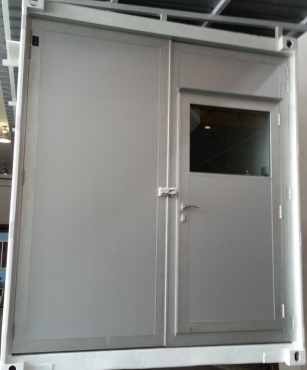

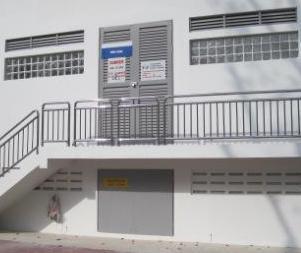

Container doors with door
within door |
| |
 |
|
 |
| |

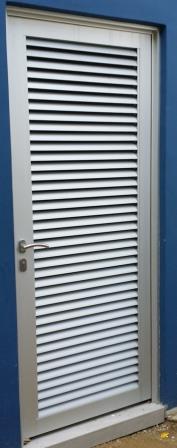

Door with aerofoil blades |
|

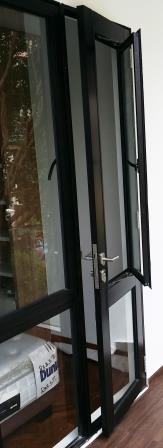

Window within hinge
door |
|
